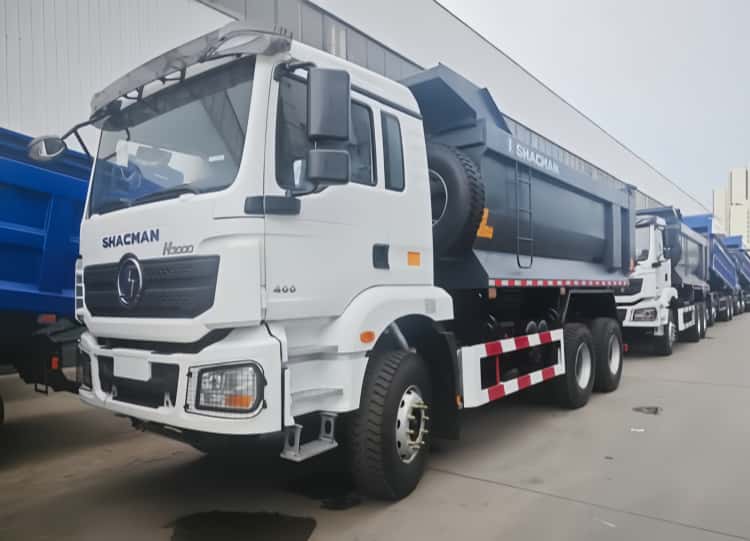

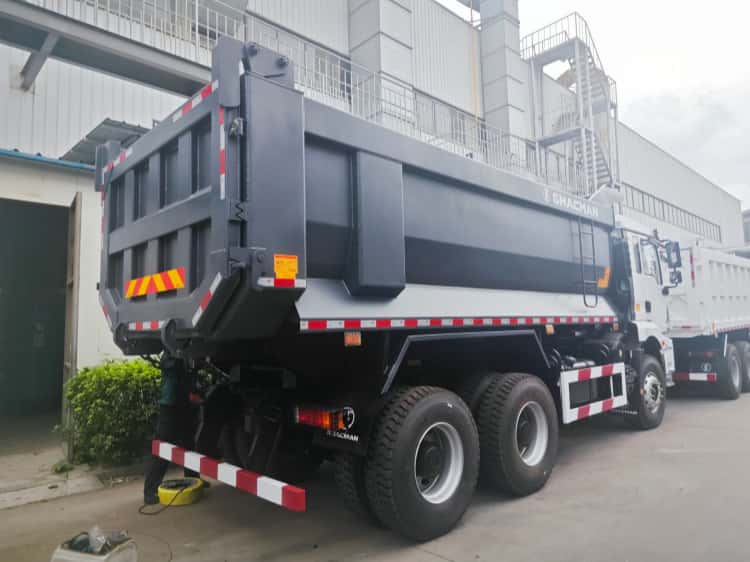

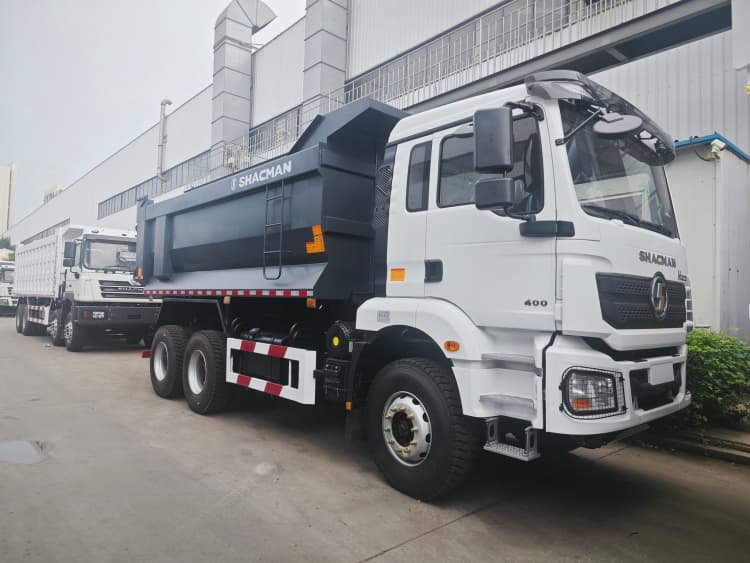

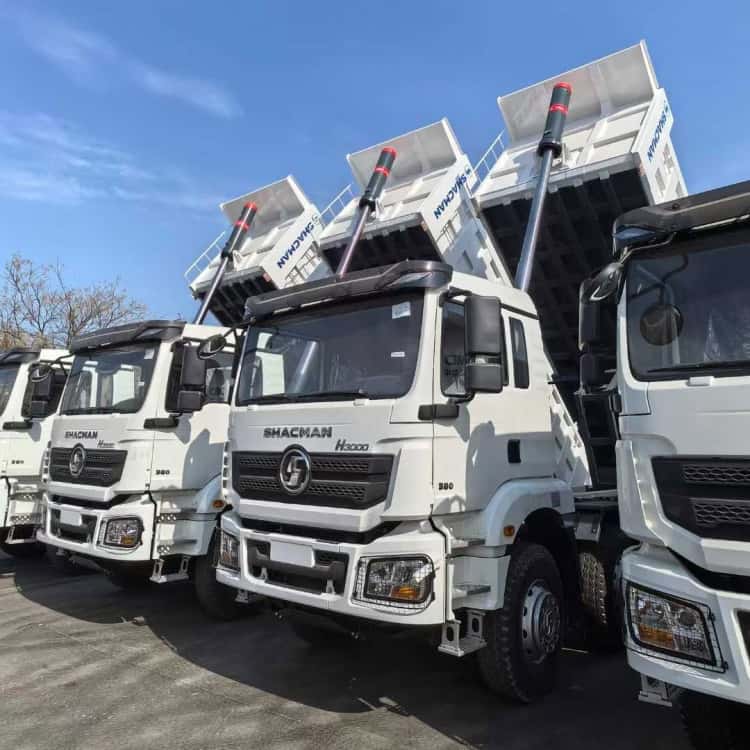

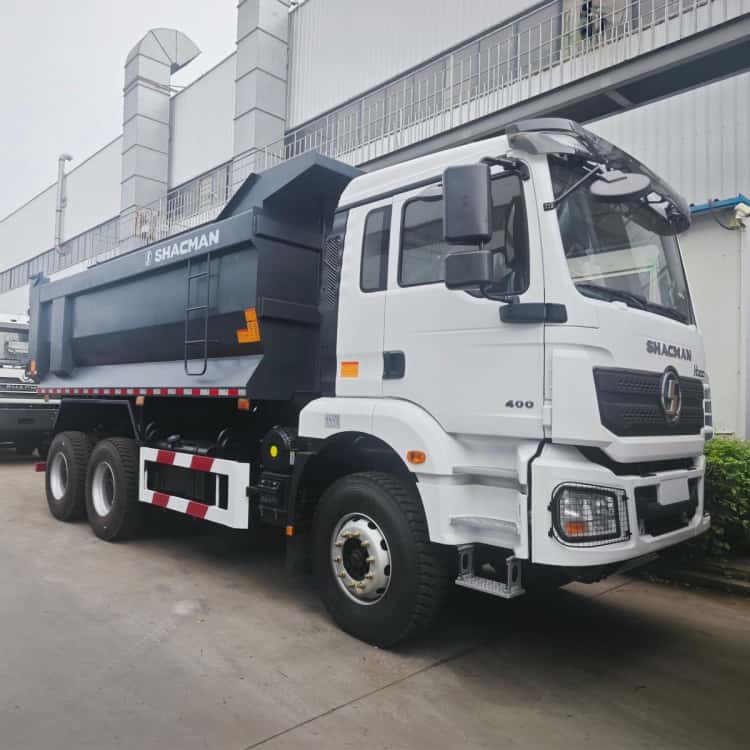

Reman SHACMAN H3000 6×4 Dump Truck 400

REMAN SHACMAN H3000 DUMP TRUCK DESCRIPTION

• Tailored for medium‑scale quarry sites, road construction projects and urban earth‑moving tasks, REMAN ROAD reman SHACMAN H3000 6×4 dump truck  delivers solid reliable performance for high‑frequency short‑haul material transport.
• Far beyond basic exterior repainting, REMAN ROAD remanufacturing process fully disassembles the powertrain, steering assembly, brake system, hydraulic lifting unit, main frame and tipper cargo box for individual inspection and evaluation.

• All load‑bearing metal components go through non‑destructive flaw detection to uncover frame micro‑deformation, welding seam fatigue and hidden wear accumulated from previous heavy‑load cycles.
• Fatigued moving parts are swapped for qualified replacement components, while reusable cast and welded structures receive stress relief treatment, with extra plate reinforcement applied to high‑stress frame sections and cargo‑box impact zones.

• After coordinated calibration of engine torque output, transmission shifting response, braking efficiency and multi‑stage hydraulic lifting rhythm, every completed REMAN ROAD reman SHACMAN H3000 6×4 dump truck undergoes full‑load dumping simulation and rough‑road driving validation.

TRUCK REMANUFACTURING PARAMETER TABLE

• Model Name: Reman SHACMAN H3000 6×4 Dump Truck 400
• Axle Configuration: 8×4; heavy‑duty SHACMAN mining‑spec drive axles fully disassembled, bearing groups and oil seals renewed
• Tyre Spec: 12.00R20 mine‑pattern off‑road tyres; wheel hubs inspected and reconditioned
• Engine: Remanufactured Weichai high‑torque diesel engine; cylinder block inspection, valve train rework, fuel injection parameters recalibrated
• Transmission:  Rebuilt heavy‑duty manual gearbox; worn friction components replaced, gear meshing backlash precisely fine‑tuned
• Suspension:  Heavy‑duty mining leaf‑spring suspension; spring fatigue screening, axle load distribution calibrated
• Hydraulic Lifting System:  Full disassembly; hydraulic cylinder overhaul, sealing kits fully renewed, multi‑stage lifting debugged, leakage‑proof test passed
• Tipper Cargo Box:  High‑strength steel body; impact‑wear zones plate‑reinforced, welding seams repaired and stress‑relieved, dump hinge assemblies renewed
• Air‑Brake System: Air chambers, relay valves and pipeline fittings renewed; long‑duration pressure retention and leak‑check validated
• Fuel Tank: Steel fuel tank, interior descaling and anti‑rust processing, all sealing connectors replaced
• Driver Cabin: Sealing reconstruction, instrument cluster calibration, air‑conditioning overhaul, interior trim refreshed, dust‑proof performance optimized
• Remanufacturing Acceptance Standard:  Module‑level disassembly, component grading screening, engine bench test, full‑load repeated dumping simulation, traceable reman archive supplied

STANDARDIZED REMANUFACTURING PROCESS

• Step 1. Incoming vehicle usage risk assessment
  Gather historical usage hints for pre‑owned dump truck, perform non‑intrusive scanning for frame and tipper‑box welding seams, identify potential wear hotspots stemming from quarry and construction‑site work before full teardown.
• Step 2. Complete disassembly, deep cleaning and component fitness judgement
  Separate every core assembly, clear quarry dust, sediment and aged oil contaminants. Sort parts into scrap, repairable and direct‑reuse categories; components subjected to heavy impact loads go through strict dimensional verification, reject parts with invisible internal damage.
• Step 3. Targeted structural restoration and system integration
  Execute welding repair and plate reinforcement for vulnerable spots on tipper box and frame, assemble renewed powertrain, transmission, drive axles and rebuilt hydraulic groups, align power output with hydraulic lifting logic to adapt to dump cycles.
• Step 4. Composite performance verification and document filing
  Run cyclic full‑payload lift‑and‑lower testing, heavy‑load downhill brake validation and whole‑vehicle road trial. Qualified reman SHACMAN tippers receive exterior finishing; all component replacement, repair and test records are logged into exclusive reman files for client hand‑over.

FULL‑LIFECYCLE TOTAL COST ANALYSIS

When tallying comprehensive expenditures including upfront procurement, scheduled site maintenance, unplanned breakdown repairs, project downtime losses and end‑of‑cycle residual asset value across the service lifespan:

• Brand‑new SHACMAN dump trucks deliver factory‑fresh mining‑tough durability yet lock up substantial project capital, with rapid depreciation eating asset value away during early‑stage site deployment.
• Second‑hand SHACMAN tippers feature low entry‑level costs, yet vague prior usage backgrounds conceal frame distortion, hydraulic degradation and powertrain impairment triggered by past overloading; unexpected on‑site breakdowns trigger expensive emergency fixes and project timeline disruptions, while undocumented service history creates major uncertainty for subsequent asset disposal.
• Superficially refurbished SHACMAN dump trucks only resolve visible defects and surface blemishes, leaving subsurface impact‑induced fatigue untouched, so maintenance expenditure rises sharply after short‑term site operation.
• REMAN ROAD reman SHACMAN H3000 dump trucks achieves optimized lifecycle economics. Its purchase cost sits far beneath brand‑new mining‑spec equivalents; standardized reman workflows eliminate latent mechanical and structural risks, cutting unplanned site downtime and emergency repair spending. Complete traceable reman documentation supports objective asset appraisal, enabling the truck to hold reasonable residual value during resale or project hand‑over and generate steady long‑run returns for construction and quarry fleets.
