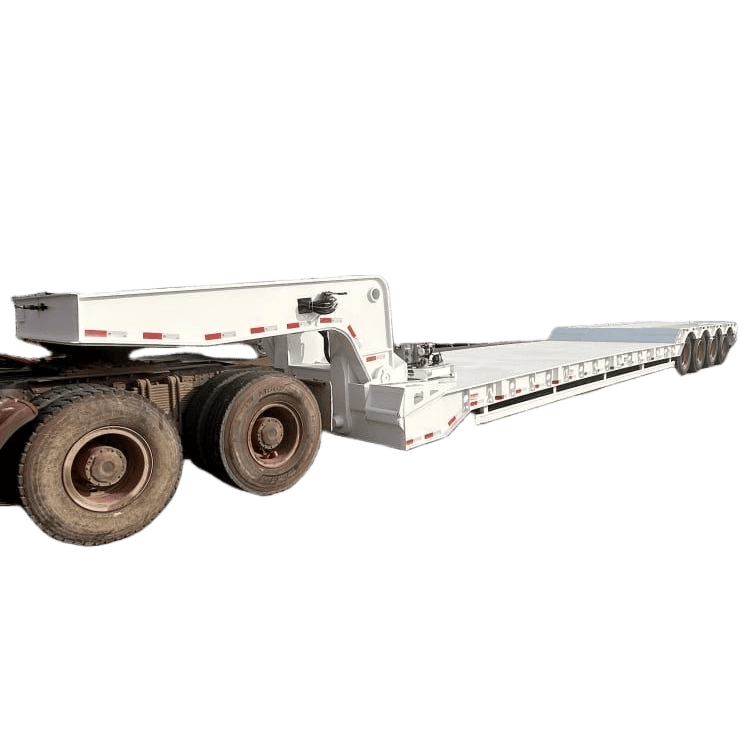

REMAN ROAD Lowboy Trailer Remanufacturing Process

Learn the professional full lowboy trailer remanufacturing process for gooseneck drop deck trailers, including gooseneck straightening, step transition reinforcement, ultra-low deck leveling, multi-axle calibration and 72-hour oversize heavy-load endurance testing.

lowboy trailer remanufacturing | reman lowboy trailer

OVERVIEW

Unlike flatbed trailers with continuous deck surfaces, lowboy trailers bear uneven torsional stress, transition bending and concentrated point loads during oversized equipment transportation. Long-term haulage of excavators, cranes and tracked machinery commonly causes gooseneck radian distortion, transition weld fatigue, step height deviation, local deck sagging and frame torsion failure. Simple repainting, tire replacement and partial part repairs cannot restore the specialized stepped structural geometry and anti-torsion rigidity required for over-height heavy haulage. Professional lowboy trailer remanufacturing is an industrial-grade structural restoration process focused on gooseneck precision calibration, transition zone anti-fatigue reinforcement, stepped deck leveling and full chassis heavy-load recovery. This article details the complete standardized lowboy trailer remanufacturing workflow, helping global fleets distinguish OEM-level remanufacturing from low-quality superficial refurbishment.

Step 1: Pre-Production Lowboy Trailer Inspection & Qualification Evaluation

Lowboy trailers rely on precise stepped geometric coordination and segmented load-bearing balance. Pre-production inspection focuses exclusively on lowboy-exclusive structural defects, including gooseneck deformation, transition step fatigue and uneven drop-deck stress distribution, to screen qualified units for professional remanufacturing.

Gooseneck Geometry Detection:

Precisely measure gooseneck bending radian, vertical height, horizontal straightness and traction seat flatness. Inspect for torsional deformation and arc distortion caused by long-term heavy traction and front-end load pressure, eliminating trailers with irreversible gooseneck structural failure.

Step Transition Zone Fatigue Screening:

Focus detection on the high-stress transition section connecting the raised gooseneck and ultra-low drop deck. Check for hidden micro-cracks, loose welding seams and metal fatigue, which are the most common failure points of lowboy trailers.

Segmented Deck Flatness Evaluation:

Use laser calibration tools to separately inspect front gooseneck platform flatness, middle transition slope consistency and rear drop-deck levelness. Record step height deviation and local depression to formulate targeted segmented restoration schemes.

Heavy-Load Chassis Parameter Recording:

Test multi-axle load-sharing balance, suspension rebound consistency, braking synchronization and traction pin firmness under uneven stepped load conditions. Establish exclusive lowboy heavy-haul data standards for subsequent remanufacturing construction.

Step 2: Complete Full-Trailer Disassembly & Deep Cleaning

The segmented stepped structure of lowboy trailers forms multiple stress grooves, transition gaps and dead corners that easily accumulate mud, rust and equipment friction residues. Ordinary surface cleaning cannot expose hidden fatigue cracks in transition welds and deformed beam bodies. Full disassembly and deep industrial cleaning are essential prerequisites for accurate structural restoration.

Full Segmented Structure Disassembly:

Systematically disassemble gooseneck accessories, traction pin assembly, transition guardrails, drop deck plates, multi-axle running gear, suspension systems, braking components and electrical safety parts. Classify all parts into reusable, repairable and mandatory replacement categories.

Stress Gap Deep Degreasing:

Adopt high-pressure jet flushing and industrial chemical degreasing to clean stepped transition gaps, beam stress surfaces and welding joints, thoroughly removing embedded oil stains, dust and cargo abrasion residues to expose complete bare metal structure.

Full-Vehicle Sandblasting Derusting:

Conduct comprehensive sandblasting on gooseneck, stepped main beams, ultra-low drop deck and chassis to completely strip aging paint, rust layers and oxide films, fully revealing lowboy-specific torsional fatigue and welding defects.

Post-Cleaning Secondary Precision Recheck:

Re-measure gooseneck radian, step height difference and drop deck flatness after cleaning, mark all deformation and fatigue points, and provide accurate data support for segmented frame correction and reinforcement.

Step 3: Gooseneck Precision Straightening & Base Reinforcement

The gooseneck is the core stress-bearing component of lowboy trailers, bearing traction tension, vertical bending and lateral torsion simultaneously. Long-term oversize load haulage easily causes arc distortion, front-end tilt and base loosening, resulting in unbalanced traction and aggravated transition stress. Professional laser calibration and hydraulic straightening restore factory-standard gooseneck geometric accuracy.

Laser Calibrated Gooseneck Straightening:

Match professional hydraulic straightening equipment with full-structure laser positioning technology to correct deformed gooseneck radian segment by segment, restore standard lifting height and smooth arc transition, and eliminate front-end deflection and torsional deviation.

Gooseneck Base Thickening & Weld Repair:

Polish aging and virtual welding seams at the gooseneck and main beam connection base, repair micro-crack defects, and adopt thickened plate reinforcement and full-penetration welding to enhance base rigidity and anti-impact performance.

Traction Assembly Calibration:

Overhaul and calibrate traction pin verticality, locking firmness and traction seat flatness to ensure stable and consistent connection with the tractor, avoiding abnormal stress concentration during heavy-load driving.

Step 4: Step Transition Zone Anti-Fatigue Reinforcement

The stepped transition section is the weakest structural link of lowboy trailers. Frequent equipment loading and uneven heavy load easily cause repeated bending fatigue, weld cracking and local depression. Targeted anti-fatigue reinforcement is the key to improving the overall service life of remanufactured lowboy trailers.

Transition Weld Full-Penetration Rewelding:

Remove old fatigue welding layers at the step transition, polish crack defects, and adopt multi-layer full-penetration welding technology to reconstruct continuous stress conduction lines, effectively solving recurrent weld cracking problems.

Transition Beam Local Strengthening:

Add reinforcing rib plates and thickened auxiliary beams at high-stress transition positions to disperse concentrated torsional load, improve the overall anti-bending and anti-torsion performance of the stepped structure.

Step Height Difference Standardization:

Fine-tune the transition slope and height difference to restore the original design stepped geometry, ensuring smooth equipment loading and uniform segmented load distribution.

Step 5: Ultra-Low Drop Deck Leveling & Wear Resistance Restoration

The rear ultra-low drop deck is the main load-bearing area for oversized engineering machinery. Long-term track extrusion, heavy friction and concentrated load pressure easily cause local sagging, plate wear, edge warping and surface unevenness, affecting equipment placement stability and transportation safety.

Drop Deck Full-Area Precision Leveling:

Perform overall geometric correction on the ultra-low deck, repair local depressions and deformed areas, eliminate height deviation, and restore complete flatness of the heavy-load bearing surface.

Heavy-Duty Wear Repair & Reinforcement:

Repair scratch wear and plate thinning caused by tracked machinery friction, implement partial overlay reinforcement, and improve overall compression resistance and abrasion resistance of the drop deck.

Loading Ladder & Edge Restoration:

Straighten deformed deck edges, repair damaged anti-slip ladders and limit baffles, ensure stable bearing during equipment rolling loading and unloading, and restore complete functional integrity.

Step 6: Multi-Axle Chassis, Suspension & Braking System Reman

Lowboy trailers bear typical uneven segmented loads, which easily cause inconsistent suspension fatigue, unbalanced axle load and asynchronous braking response. Full-system chassis remanufacturing eliminates load deviation faults and restores stable heavy-haul coordination performance.

Multi-Axle Synchronous Calibration & Overhaul:

Fully disassemble and inspect each axle assembly, replace aging bearings, oil seals and wear parts, calibrate wheel parallelism and running balance one by one, eliminate eccentric wear and driving deviation caused by uneven load.

Uneven-Load Suspension Renewal:

Replace fatigued leaf springs, shock absorbers and suspension brackets, adjust the elastic buffer coefficient of each group of suspensions to adapt to lowboy segmented load characteristics, and solve unbalanced chassis stress.

Braking System Synchronization Upgrade:

Renew aging brake drums, brake pads, air chambers and high-pressure air pipelines, clean valve group dirt, calibrate front-rear braking synchronization, ensuring stable and rapid braking under uneven heavy-load conditions.

Support Leg Functional Restoration:

Overhaul telescopic support legs, repair jamming and aging faults, ensure stable vertical support during static loading and parking, and improve overall operational safety.

Electrical & Safety System Debugging:

Replace aging wiring harnesses, oversize load warning lights and reflective marks, debug circuit stability, and fully comply with oversize heavy-haul transportation safety standards.

Step 7: Full-Vehicle Stepped Structure Anti-Corrosion & Spraying Treatment

Lowboy’s unique gooseneck and stepped transition structure has multiple gaps and uneven surfaces, which easily accumulate rainwater and sediment and suffer alternating stress corrosion. Professional lowboy trailer reman targeted anti-corrosion spraying effectively delays structural aging and improves long-term heavy-haul durability.

Full Structure Deep Rust Removal:

Conduct overall sandblasting and fine polishing on gooseneck, stepped transition beams, ultra-low deck and chassis to completely remove rust layers, aging paint and oxide attachments, forming a high-adhesion painting base.

Three-Layer Industrial Heavy-Duty Spraying:

Apply anti-rust primer, intermediate anti-corrosion paint and weather-resistant finish paint layer by layer. Each layer is fully cured and polished to form a dense, scratch-resistant and anti-aging protective film suitable for complex construction site scenarios.

Stress Zone Enhanced Anti-Corrosion:

Strengthen waterproof and anti-rust treatment for transition welding seams, gooseneck root gaps and chassis vulnerable areas to avoid local corrosion-induced structural strength attenuation.

Step 8: Full-System Synchronous Debugging & Load Balance Fine Tuning

After structural restoration and component assembly, professional debugging targeting lowboy stepped load characteristics ensures coordinated operation of gooseneck traction, segmented frame, multi-axle chassis and braking system, eliminating hidden dangers of uneven stress and asynchronous response.

Segmented Load Balance Debugging:

Fine-tune chassis levelness and multi-axle load-sharing parameters according to lowboy front-high rear-low stepped load rules to ensure uniform stress distribution of each beam segment and each axle group.

Heavy-Load Driving Stability Calibration:

Adjust multi-axle running balance and braking synchronization to solve heavy-load jitter and deflection problems unique to stepped trailers, ensuring stable long-distance oversize transportation.

Full-Function Inspection & Verification:

Test gooseneck traction flexibility, deck flatness, support leg stability and safety system sensitivity to achieve full functional compliance of remanufactured lowboy trailers.

Step 9: 72-Hour Oversize Heavy-Load Endurance Simulation Test

Lowboy trailers are dedicated to over-height and oversized heavy equipment transportation, so the endurance test adopts simulated uneven segmented load standards to verify the anti-fatigue performance and structural stability of stepped structures under long-term extreme working conditions.

Static Segmented Pressure Holding Test:

Simulate eccentric heavy load of engineering machinery, perform long-term static pressure test on gooseneck, transition zone and drop deck respectively, detect structural deformation and stress stability.

Dynamic Heavy-Haul Road Simulation:

Simulate construction site bumpy roads, highway high-speed cruising and frequent loading and unloading operations to test reman lowboy semi trailer frame anti-fatigue performance and chassis braking reliability.

72-Hour Full-Condition Continuous Monitoring:

Real-time track gooseneck radian stability, step geometry consistency and chassis load balance to eliminate intermittent hidden structural faults that cannot be detected by short-term tests.

Step 10: Final Full-Index Inspection, Quality Filing & Delivery

Strict full-index final inspection and standardized one-trailer-one-file filing ensure every remanufactured lowboy trailer meets industrial-grade oversize heavy-haul safety standards with complete traceable quality records.

Lowboy Exclusive Performance Re-Inspection:

Recheck gooseneck geometric accuracy, transition zone structural stability, drop deck flatness, multi-axle load balance and full-load braking safety to reach OEM-grade lowboy trailer remanufacturing standards.

Complete Process Record Filing:

Sort out pre-inspection evaluation reports, gooseneck correction data, transition reinforcement records and 72-hour endurance test data to form independent traceable quality files.

Fine Finishing & Standard Delivery:

Complete overall cleaning and detail finishing, and deliver complete certification documents, test reports and official after-sales warranty instructions.

Core Differences: Reman Lowboy Trailer VS Refurbished Lowboy Trailer

Most customers cannot distinguish professional lowboy trailer remanufacturing from ordinary low-cost refurbishment. The two methods have essential differences in structural restoration depth, technical standards, heavy-load safety and long-term durability, directly determining whether the trailer can safely undertake oversize heavy equipment transportation tasks.

Structural Restoration Depth:

Professional lowboy trailer remanufacturing focuses on core structural recovery including gooseneck radian correction, transition zone anti-fatigue welding and segmented frame stress balance, completely eliminating hidden torsional fatigue and deformation.
Ordinary refurbishment only repairs surface damage and cosmetic defects, retaining inherent stepped structural stress risks and hidden cracks.

Professional Process Standards:

REMAN ROAD Certified lowboy trailer remanufacturing follows complete industrial processes including full disassembly, sandblasting derusting, laser precision calibration, targeted structural reinforcement and 72-hour extreme load testing.
Low-end refurbishment skips key fatigue elimination and precision correction procedures, relying only on simple part replacement and repainting.

Oversize Load Safety Performance:

Remanufactured lowboy trailers restore factory-level stepped geometry and uneven load resistance, adapting to long-term over-height and eccentric heavy-load transportation.
Refurbished trailers have uncorrected gooseneck deviation and transition fatigue, prone to weld cracking and structural failure during heavy equipment haulage.

Durability & Anti-Corrosion Ability:

Formal lowboy trailer remanufacturing adopts three-layer heavy-duty anti-corrosion treatment for lowboy special stepped gaps and stress zones, effectively resisting long-term construction site erosion.
Ordinary refurbishment only uses thin surface paint, resulting in rapid rusting and structural strength attenuation.

Quality Stability & Warranty:

Remanufactured lowboy trailers have complete test data and traceable quality files with reliable after-sales warranty.
Refurbished units have untested overall performance, unstable load-bearing capacity and high failure rate in actual heavy-haul operations.
