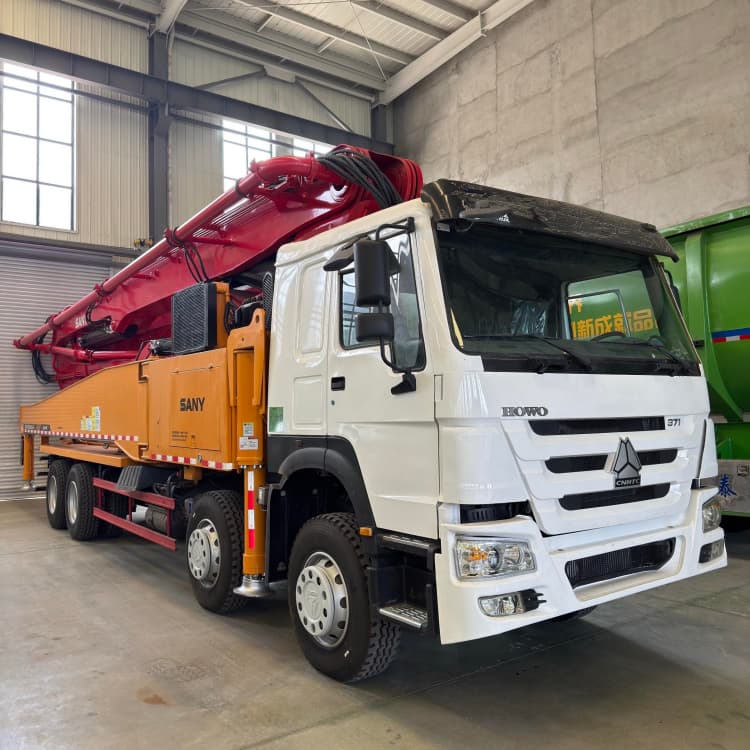

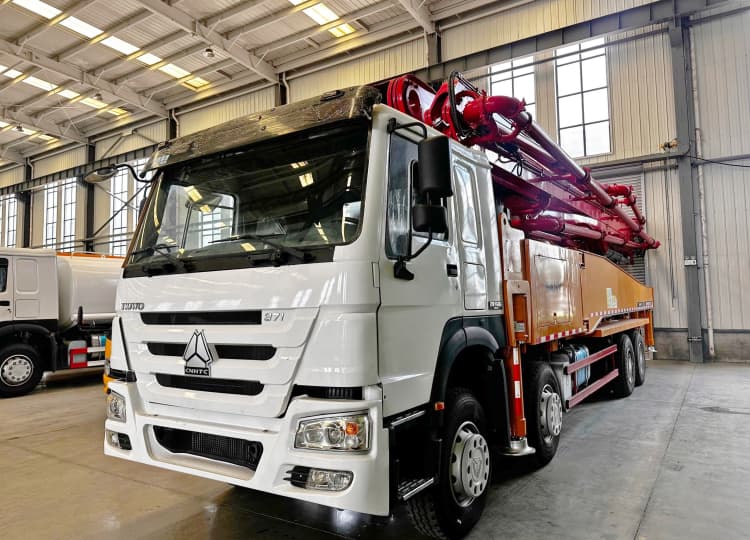

Reman HOWO 8×4 Sany Concrete Pump Truck

REMAN PUMP TRUCK DESCRIPTION

• Purpose‑built for high‑demand building construction, bridge and infrastructure projects, this REMAN ROAD reman HOWO pump truck integrates a reconditioned Sany pumping boom unit, going far beyond simple exterior repainting.
• The whole asset is split into two major sections: heavy‑duty HOWO chassis and upper concrete pumping superstructure, each undergoing independent disassembly, cleaning and technical assessment.

• Main frame, outrigger mounting points and boom connection bases perform non‑destructive flaw detection to trace metal fatigue and micro‑cracks generated from frequent vibration and heavy lifting during prior construction cycles.
• On the chassis side, worn powertrain, steering and brake components are replaced with certified spare parts. For the upper pumping section, boom segments are inspected for crack risks; aging hydraulic hoses, sealing packs and pumping cylinders get fully renewed; all welding joints on outriggers are reinforced.

• After synchronized calibration of chassis power output, brake performance and multi‑stage hydraulic boom pressure, the complete reman pump truck carries out static outrigger support test, boom unfolding test and simulated pumping load validation.

TRUCK REMANUFACTURING PARAMETER TABLE

• Overall Dimension (mm):  12400×2550×4000; main frame magnetic‑particle flaw detection completed; boom base & outrigger mounting points reinforced
• Axle Configuration:  8×4; heavy‑duty HOWO axles fully disassembled, bearing sets and oil seals renewed
• Tyre Spec: 12.00R20 heavy‑duty highway‑pattern tyres; wheel hubs inspected and torque‑calibrated
• Engine:  Remanufactured Weichai diesel engine; cylinder block inspection, valve‑train overhaul, fuel injection parameters recalibrated
• Transmission:  Rebuilt heavy‑duty manual gearbox; worn friction components replaced, gear backlash precisely adjusted
• Suspension: Heavy‑duty leaf‑spring suspension; spring fatigue screening completed, suspension geometry recalibrated
• Steering System: Steering gear overhaul, sealing elements replaced, steering free‑play fine‑tuned
• Air‑Brake System: Air chambers, relay valves and pipeline fittings renewed; long‑duration pressure‑holding & leakage test passed
• Fuel Tank:  Steel fuel tank, interior descaling and anti‑rust treatment, all sealing connectors replaced

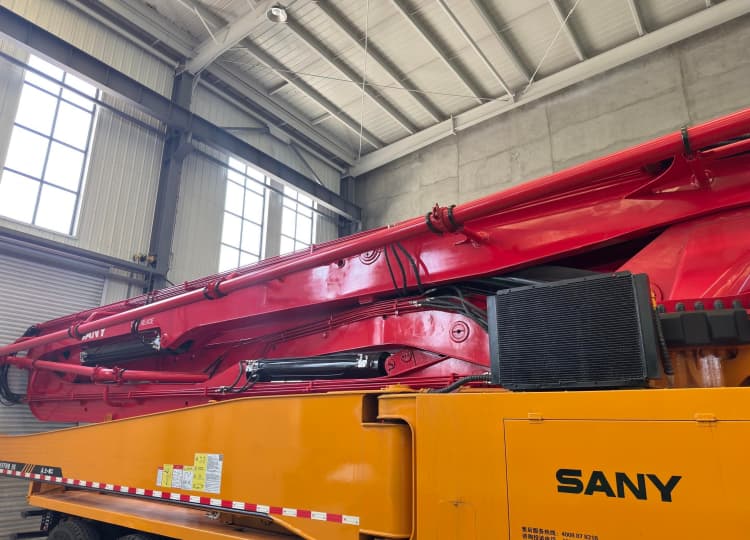

• Pumping Superstructure (Sany):Boom segment crack inspection, critical welds re‑reinforced; full renewal of hydraulic hoses, seals and pumping cylinders; hydraulic system high‑pressure leakage test; outriggers overhauled, support pads replaced
• Cabin: Sealing reconstruction, instrument calibration, air‑conditioning overhaul, interior trim refreshed

STANDARDIZED REMANUFACTURING PROCESS

• Step 1. Pre‑teardown dual‑system comprehensive diagnosis
  Carry out full inspection for HOWO chassis and Sany pumping superstructure separately. Record chassis powertrain, brake and steering status, meanwhile check boom movement, hydraulic leakage, outrigger working condition and pumping performance, mark high‑risk stress areas before disassembly.
• Step 2. Separate disassembly, deep cleaning and component evaluation
  Detach pumping upper body from chassis. Dismantle chassis into powertrain, steering, brake and suspension assemblies; take apart boom sections, hydraulic circuits, pumping cylinders and outriggers. Clean all mechanical and hydraulic parts. Main frame, boom base and outrigger connection points complete non‑destructive flaw scanning. Scrap any components with cracks or permanent deformation. Reusable metal parts receive precision refurbishment; all high‑wear and hydraulic sealing components adopt certified replacement spares.
• Step 3. Structural reinforcement, reassembly and hydraulic commissioning
  Reinforce frame cross‑members, boom base and outrigger mounting welds. Reassemble all chassis assemblies and complete powertrain‑axle matching. Restore boom segments, install brand‑new hydraulic hoses and seal kits, assemble pumping cylinders and outrigger mechanisms. Debug chassis brake‑steering system and tune multi‑stage hydraulic pressure parameters for pumping boom.
• Step 4. Combined performance verification & document archiving
  Execute engine bench test, chassis full‑load road test, static outrigger bearing test, full boom unfolding test and simulated concrete pumping pressure test. After passing all inspections, complete cabin and exterior finishing. Compile chassis and pumping‑unit overhaul data into one unified traceable reman archive for customer delivery.

FULL‑LIFECYCLE TOTAL COST ANALYSIS

When accounting for initial purchase expense, routine logistics maintenance, unplanned breakdown repair bills, operational downtime losses and residual resale value across the whole service cycle;

• Brand‑new trucks deliver factory‑fresh reliability yet demand substantial capital outlay and suffer steep depreciation once put into daily freight service.
• Ordinary used trucks come with low entry price, yet unknown prior freight workload often hides frame fatigue, distorted fence mounting brackets and internal powertrain wear; unexpected failures frequently emerge under continuous heavy‑cargo operation, bringing emergency repair costs and shipment delay risks, while incomplete service records create big uncertainty for future resale.
• Basic refurbished truck only mend obvious surface damage and repaint the cage, without deep teardown of chassis assemblies, so concealed structural risks remain and gradually worsen under long‑haul cyclic loads.
• REMAN ROAD reman pump truck achieves balanced full‑cycle economic benefit. Its acquisition cost is far lower than brand‑new counterparts; standardized reman workflows eliminate latent chassis and cargo‑body hazards, cutting unplanned downtime and emergency repair expenditure. Complete traceable reman documentation supports fair asset valuation, enabling the truck to retain solid residual value after years of logistics use, creating sustainable returns for small‑to‑mid‑size logistics fleets.
