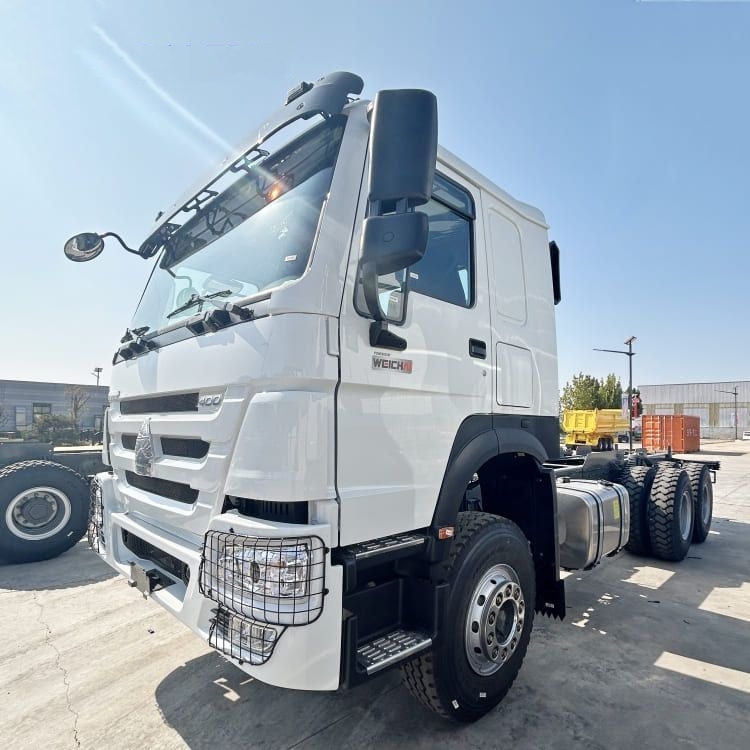

Reman Sinotruk Howo Chassis Truck 6×4

REMAN CHASSIS TRUCK DESCRIPTION

• Developed for special‑vehicle converters and engineering fleets that require self‑configured upper equipment, REMAN ROAD reman chassis truck for sale goes far beyond simple repainting work.
• The whole chassis is fully disassembled into powertrain, steering, brake assemblies, main frame and suspension for independent inspection.

• Every load‑bearing frame section and mounting hole undergoes non‑destructive flaw detection, identifying micro‑cracks, metal fatigue and slight deformation accumulated from prior heavy‑load service.
• Fatigued moving assemblies get replaced with certified spare parts; high‑stress frame zones receive targeted reinforcement.

• After coordinated tuning of engine torque, gear‑shift performance and brake system, each chassis completes full‑load road simulation test.
• REMAN ROAD reman chassis truck for sale serves as a dependable base for installing tipper boxes, fuel tanks, concrete mixers and other custom superstructures, helping conversion clients cut overall procurement investment.

TRUCK REMANUFACTURING PARAMETER TABLE

• Overall Dimension (mm): 8350×2480×3120; main frame magnetic‑particle flaw detection completed; superstructure mounting points calibrated to OEM dimension
• Axle Configuration: 6×4; heavy‑duty HOWO drive axles fully disassembled, bearing groups and oil seals renewed
• Tyre Spec: 12.00R20 heavy‑duty tyres; wheel hubs inspected and torque‑calibrated
• Engine: Remanufactured Weichai 400HP diesel engine; cylinder block inspection, valve train overhaul, fuel injection parameters recalibrated
• Transmission: Rebuilt heavy‑duty manual gearbox; worn friction assemblies replaced, gear backlash precisely fine‑tuned

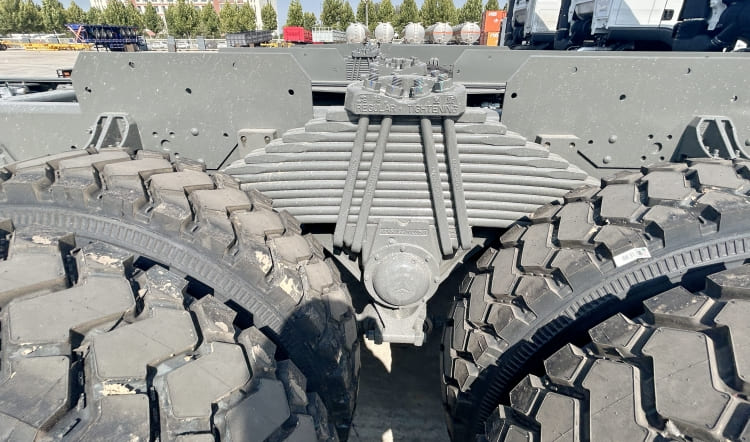

• Suspension: Heavy‑duty leaf‑spring suspension; spring fatigue screening finished, suspension geometry recalibrated
• Steering System: Steering gear overhaul, sealing elements replaced, steering clearance adjusted
• Air‑Brake System: Air chambers, relay valves and pipeline fittings renewed; long‑duration pressure retention and leakage validation passed

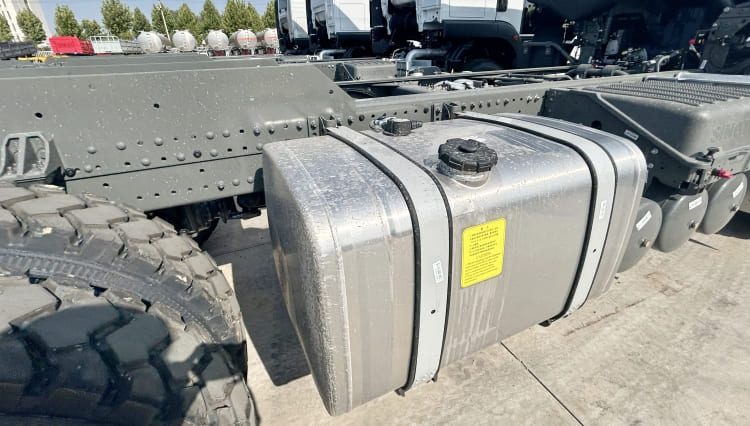

• Fuel Tank: Steel fuel tank, interior descaling and anti‑rust processing, all sealing connectors replaced
• Cabin: Sealing reconstruction, instrument cluster calibration, air‑conditioning overhaul, interior trim refreshed

STANDARDIZED REMANUFACTURING PROCESS

• Step 1. Pre‑teardown comprehensive diagnosis
  Run full functional inspection for incoming HOWO 6×4 chassis, record powertrain output, steering clearance, brake performance and frame deformation signs, mark high‑risk mounting points before module disassembly.
• Step 2. Full disassembly, cleaning and component assessment
  Dismantle chassis into powertrain, steering, brake, suspension and main frame; thoroughly clean all components. Frame and welded parts conduct non‑destructive flaw scanning; scrap parts with crack or permanent deformation. Qualified reusable hardware receives precision refurbishment, all high‑wear assemblies adopt certified replacement spares.
• Step 3. Frame restoration, mounting‑point calibration and system reassembly
  Reinforce frame high‑stress cross‑members, correct deformed superstructure mounting positions to match OEM dimension, reassemble each assembly. Complete powertrain‑transmission‑drive‑axle matching, debug steering clearance and brake pressure output.
• Step 4. Chassis performance validation & file archiving
  Execute engine bench test, static brake pressure‑holding test and full‑load chassis road test. Qualified chassis finish cabin finishing; all repair and replacement data are sorted into exclusive reman archive for client delivery.

FULL‑LIFECYCLE TOTAL COST ANALYSIS

When calculating total expenditure covering upfront purchase, conversion cost, scheduled maintenance, unexpected breakdown repairs, downtime losses and residual value over the service cycle:

• Brand‑new HOWO 6×4 chassis brings factory‑level reliability yet occupies large capital budget, and suffers sharp depreciation once fitted with superstructure and put into operation.
• Ordinary used chassis truck features low entry‑level price, yet unknown prior service history hides frame deformation, mounting‑point distortion and powertrain hidden damage; sudden mechanical failures happen easily after upper‑body installation, bringing extra rework cost and project delay risk, while unclear overhaul records create big uncertainty for later resale.
• Basic refurbished chassis truck only repairs visible faults and repaints surface, without deep disassembly of core assemblies, so internal structural hazards remain and will gradually emerge under heavy‑load working conditions.
• REMAN ROAD reman chassis truck for sale realizes optimized full‑cycle economic performance. Its acquisition cost is obviously lower than new chassis; standardized reman workflows eliminate latent mechanical and frame risks, cutting unplanned downtime and emergency repair expense. Complete traceable reman documents support objective asset evaluation, so the chassis maintains decent residual value after conversion, generating stable long‑term benefits for special‑vehicle conversion workshops and fleet operators.
